Curved screen printer
東莞絲印設備廠家直銷RH-5A側面多功能曲面絲印機
Dongguan Rihe Screen Printing Equipment Co., Ltd. was established in 2002. It is a professional research and development, design, production and sales of various printing equipment.
We focus on the manufacture of high-end pad printers, screen printers, and peripheral equipment for silk pad printing. With excellent cost performance and perfect pre-sale and after-sales service...
WE'RE HERE TO HELP
Easy ways to get the answers you need.
Contact Now
Easy ways to get the answers you need.

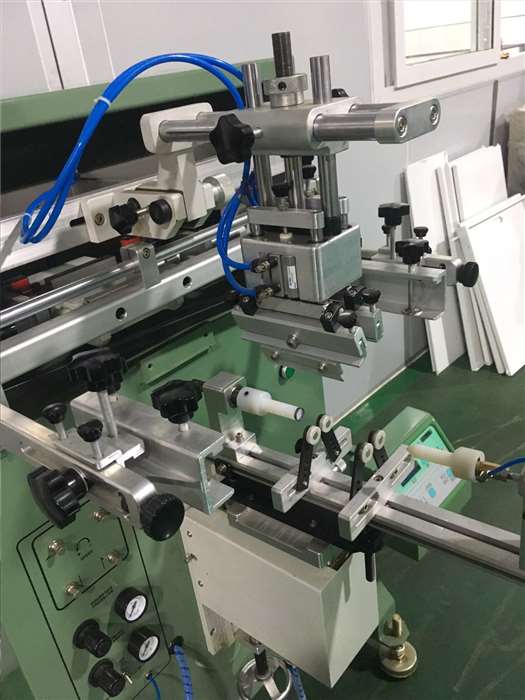

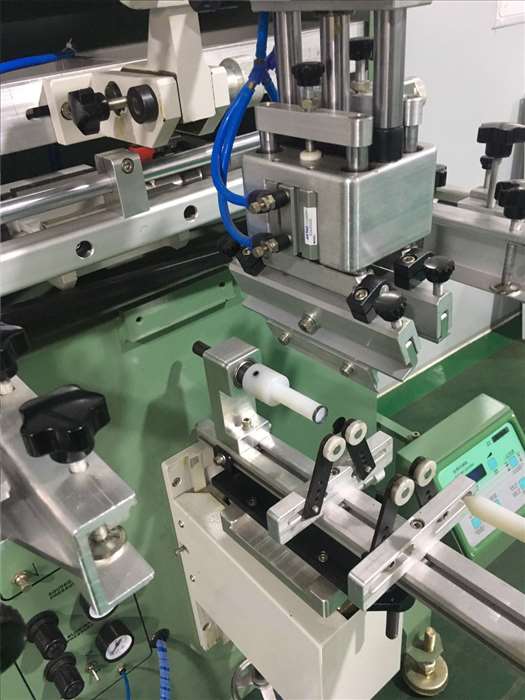

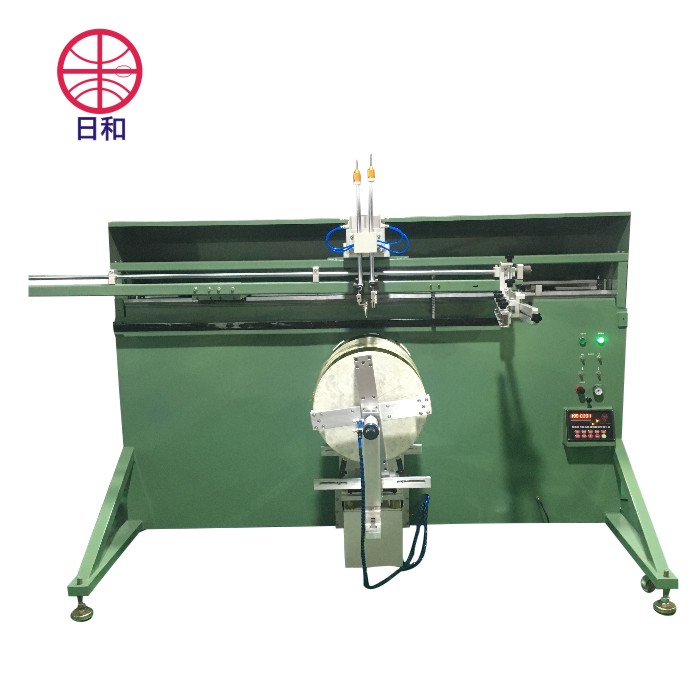

Suitable for printing on the surface of cylindrical, conical and oval object; such as lipstick, cosmetic bottles, scour bottles, drink bottles, pots, oil-filter shell etc, the materials that is made of metal, plastic, ceramic, glass, wood, and so on. With the perfect design and innovation technology, ensure the fast printing speed and good printing quality。
Feature
1. Advanced fully automatic computerized system control,easy handing .
2. Built-in four figures automatic LED digital counter
3. Suitable for printing on round, cylindrical, oval or flat project
4. Light-weight, strong aluminum cast machine frame, Adujustability of routs and speeds
5. Automatic oil scrabbing, oil return and lifting table
6. Squeegee/flood bar depth, pressure, speed, leveling, and stroke etc., are all adjustable to fit your various printing needs.
7. Horizontal movement of screen frame can be adjusted to fit your various printing needs.
8. Net frame work table can be adjusted around emblem, tone down logo, printing, high precision, easy to adjust ,quick.
9. Adopt German FESTO components,Main Parts FESTO cylinde made by Geramny
Specifications
1 Max printing diameter: Φ375 mm
2. Max Printing area：420×1170mm
3. Max gradient for Work piece：14°
4. Air pressure：6 Bar
5. Air consumption：600 liter/min
6. Power voltage: AC 110V/220V
7. Power consumption：50 W
8. Machine dimension：1720×1600×1650mm
9. Machine weigh: 230 kg
