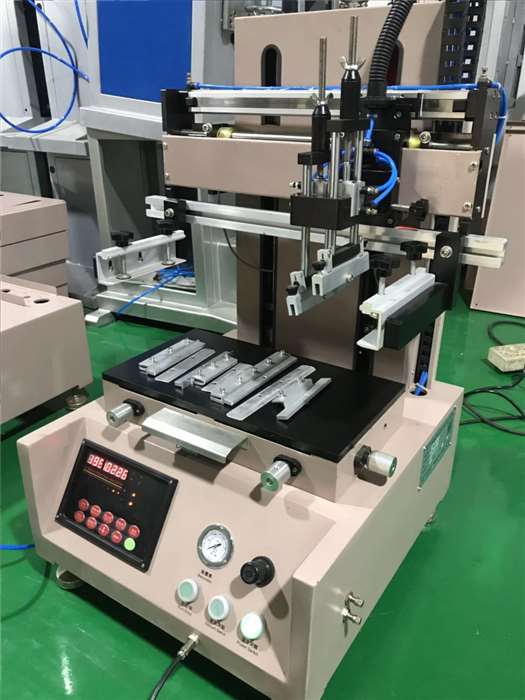

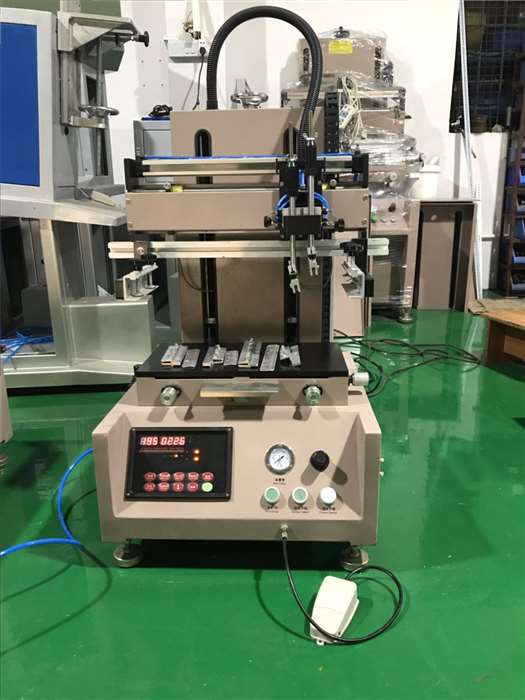

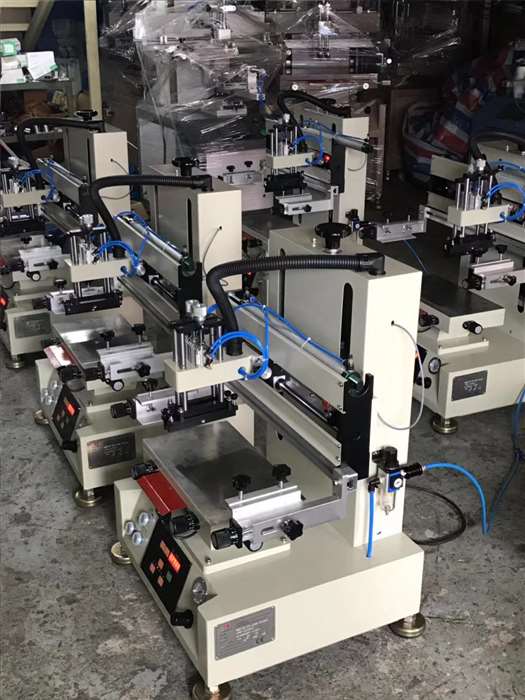

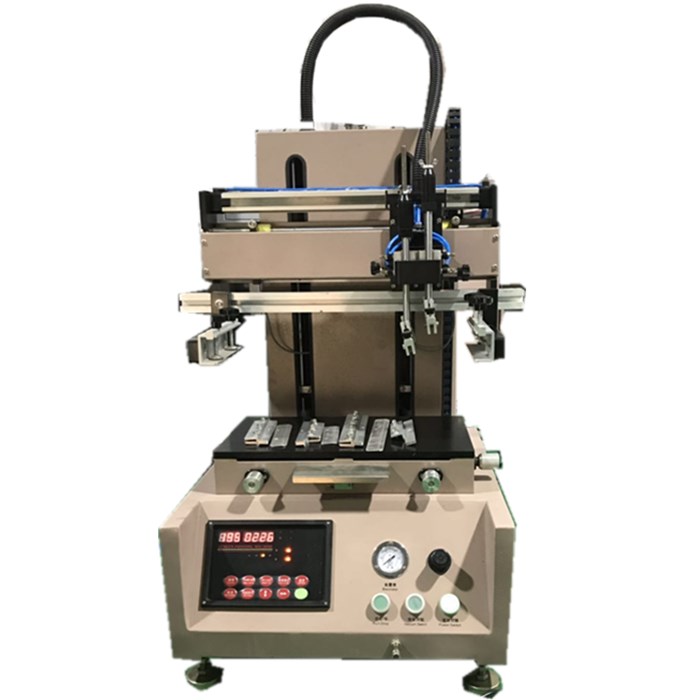

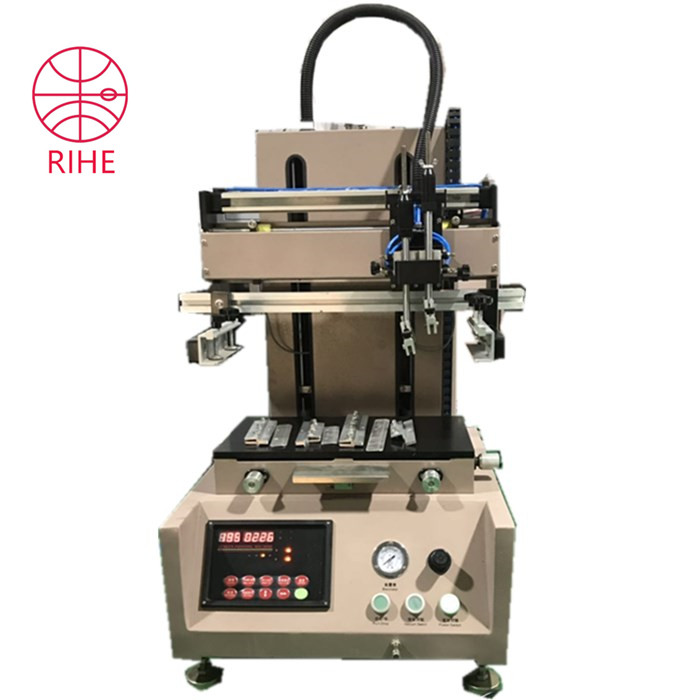

RH-2030 Planar Inhalation Screen Printing Machine
Easy ways to get the answers you need.
Product introduction:
1 微電腦控制各功能動作,操作簡單方便,內設五位自動計數器。
1. Microcomputer controls the action of each function. It is simple and convenient to operate. It has five-bit automatic counter.
2 所有氣動元件采用進口品牌,確保機器質量優良。
All pneumatic components adopt imported brands to ensure the quality of the machine.
3 左右橫刮采用有桿氣缸驅動,走位平穩順滑。
3. Around the scraper is driven by a rod cylinder, and its position is smooth and smooth.
4 工作臺可進行前后,左右、平面擺角微調,網框可以前后微調,調校方便,快捷。
4 Workbench can be fine-tuned before and after, left and right, plane pendulum angle, mesh frame can be fine-tuned before and after, adjustment is convenient and fast.
5 自動平衡刮刀,保證刮油壓力均衡,刮刀壓力可自由調節,.印刷行程和速度可調,能滿足不同的印刷要求,整機機械誤差5個絲以內。
Automatic balancing scraper to ensure oil pressure balance, scraper pressure can be adjusted freely, printing stroke and speed can be adjusted to meet different printing requirements, the machine mechanical error is less than 5 silks.
6 工作臺:T槽臺/吸風臺可選擇。
6 Workbench: T groove platform/suction platform is optional.
技術參數:
Technical parameters:
型號 2030xf
Model 2030xf
最大網框面積(mm) 250*450
Maximum mesh area (mm) 250*450
工作臺面積(mm) 250*400
Workbench area (mm) 250*400
最大印刷面積(mm) 200*280
Maximum printing area (mm) 200*280
最大工件印刷高度(mm) 50mm
Maximum workpiece printing height (mm) 50mm
印刷速度 1500次/小時
Printing speed 1500 times per hour
電源 110/220V 50/60HZ 40W
Power supply 110/220V 50/60HZ 40W
