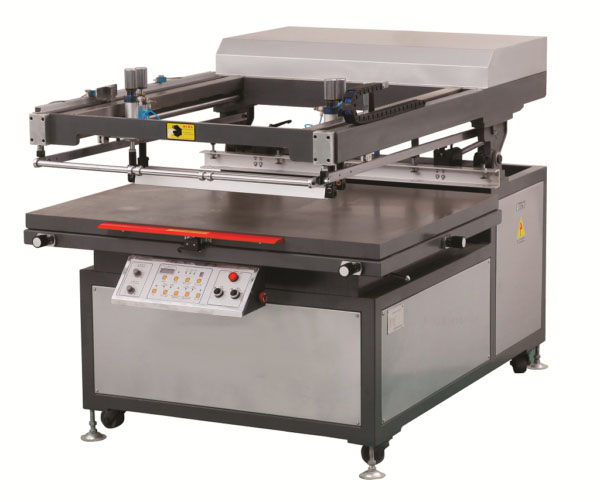

Oblique-arm screen printer
斜臂絲印機(jī)RH-90120
Dongguan Rihe Screen Printing Equipment Co., Ltd. was established in 2002. It is a professional research and development, design, production and sales of various printing equipment.
We focus on the manufacture of high-end pad printers, screen printers, and peripheral equipment for silk pad printing. With excellent cost performance and perfect pre-sale and after-sales service...
WE'RE HERE TO HELP
Easy ways to get the answers you need.
Contact Now
Easy ways to get the answers you need.
1. Working Table Size:1000*1300MM
2.Max printing area：900X1200MM;
3. Max. Screen Size:1200*1500
4. Min.Screen size: 650*700mm
6. Frame Lift Height: 300mm
7. Operation Air Pressure: 0.3 Mpa.--0.5Mpa.
8. Air consumptions(0.6 mpa): 13/pcs
9. Max.Product thickness:0-20 MM;0-50mm
10. Power rate: 2.3KW
11. Voltage: 220V/50HZ, single phrase
12. Table Height: 820mm
13. Max. printing speed. 500-1200pcs/Hour
14. Machine dimension:1800*1400*1300mm
15. Machine weight: 550Kg
